Ramkumar. R

I have total 20 years of experience in that 10 years of plastic Mould design working experience and has many types of mould concept and has10 years of Drafting and modelling (EOAT) of BIW tooling.

On the past experience, I have experience on all conventional machine and also EDM Sparking Erosion and Wirecut

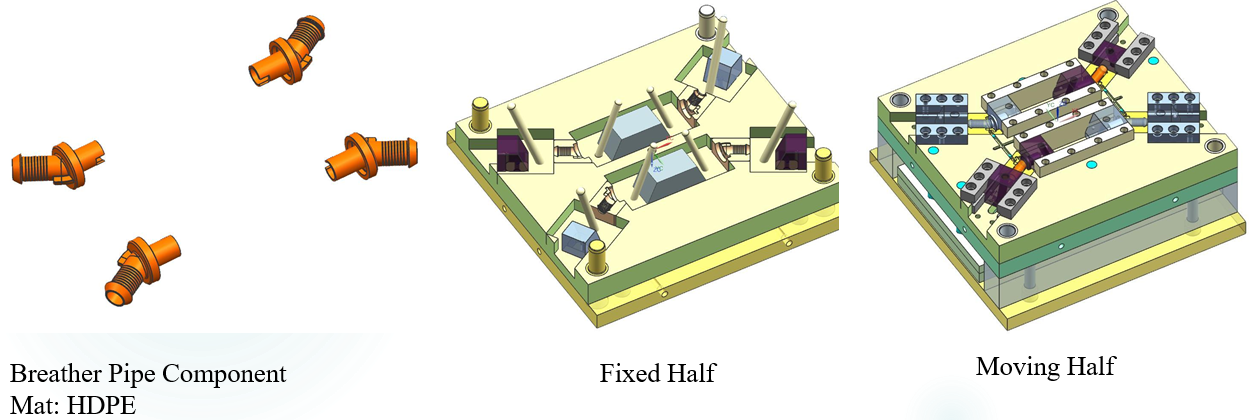

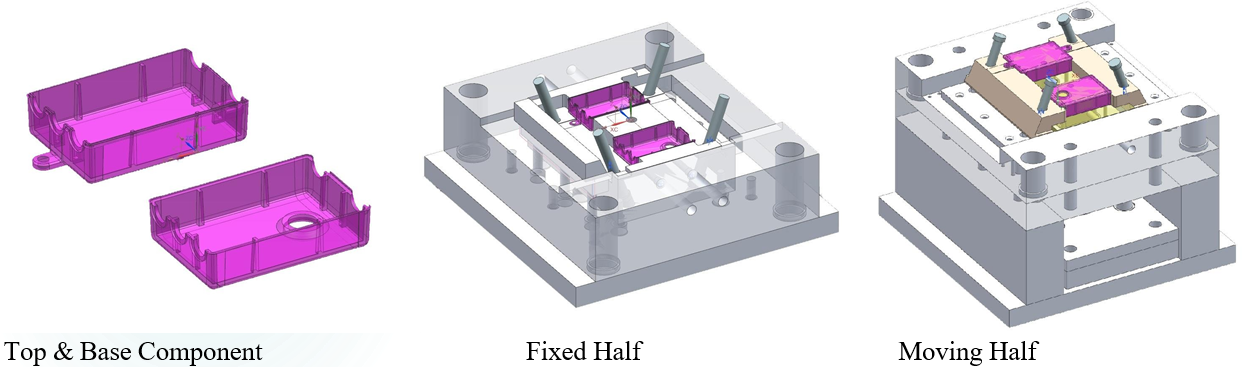

Family Mold Design with Slider

Cavity Mold Design with Stepper Ejection

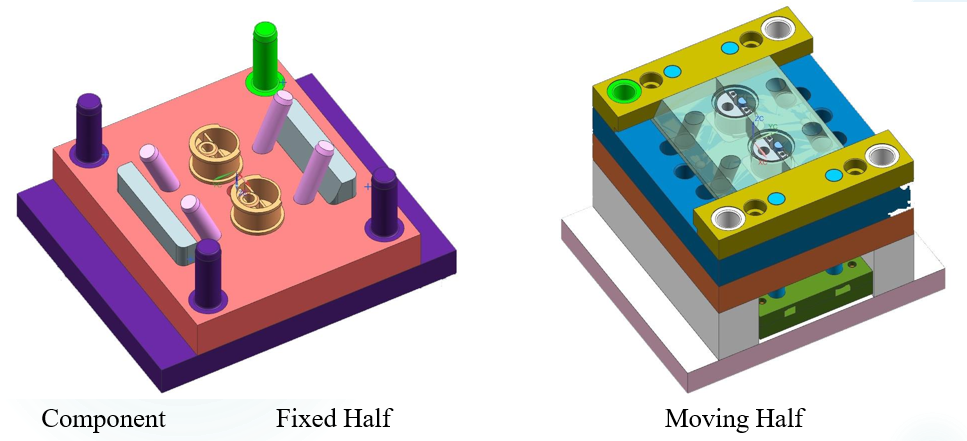

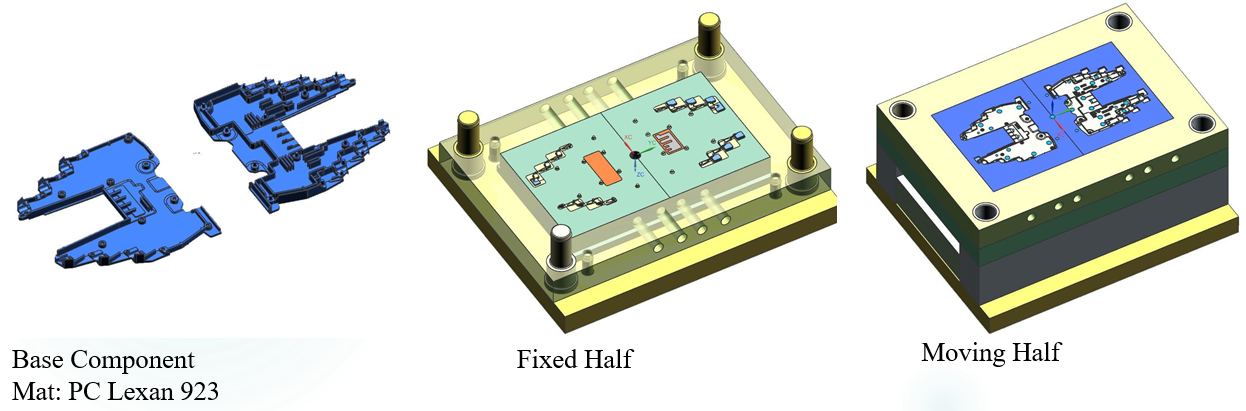

Family Mold Design

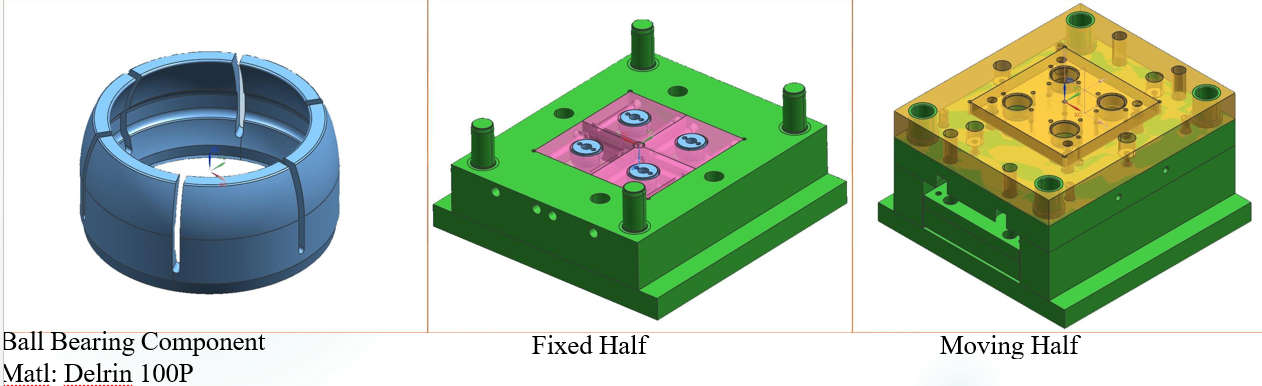

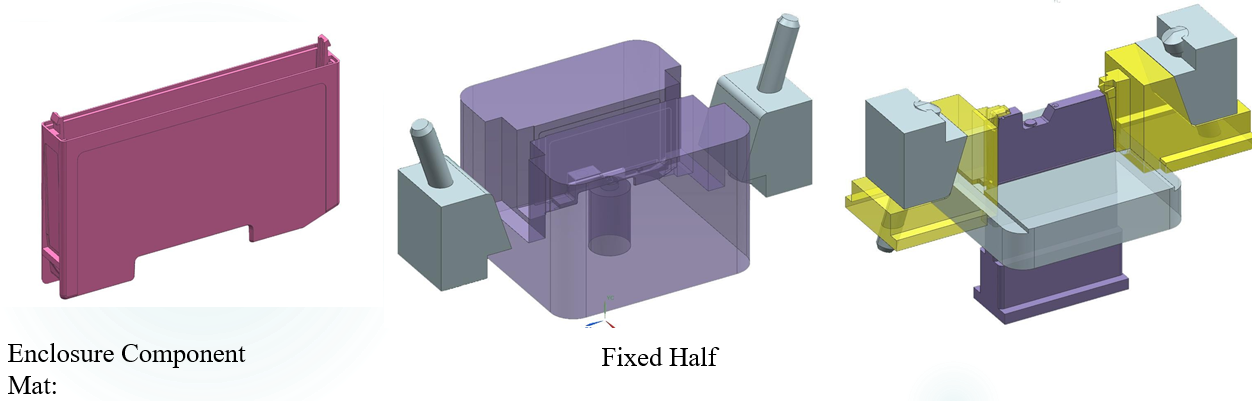

Cavity Mold Design with Slider

Cavity Mold Design with Stepper Ejection

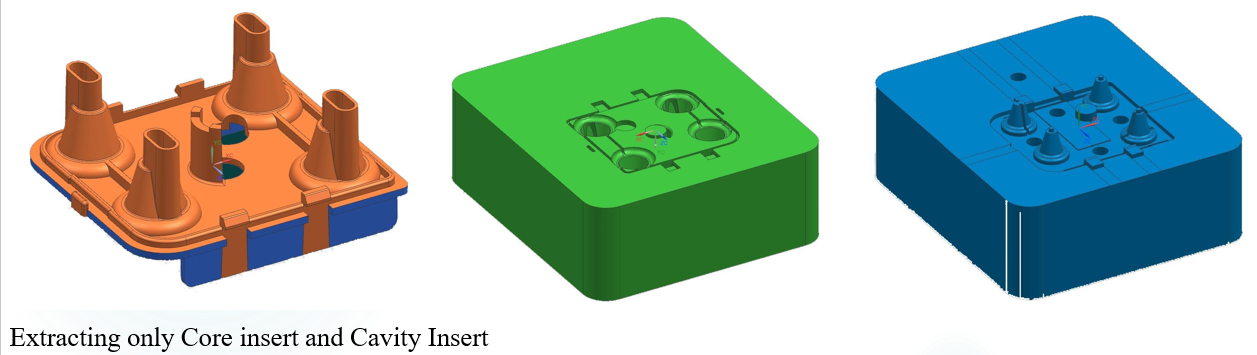

Existing Mold Base changing only inserts

Existing Mold Base with Hot manifold & Hot sprue bush replacing only Core insert, Stepper insert, Cavity inserts & Cavity sub inserts

Existing Mold Base with Hot manifold & Hot sprue bush replacing only Core, Cavity inserts, Slider & wedges

Components

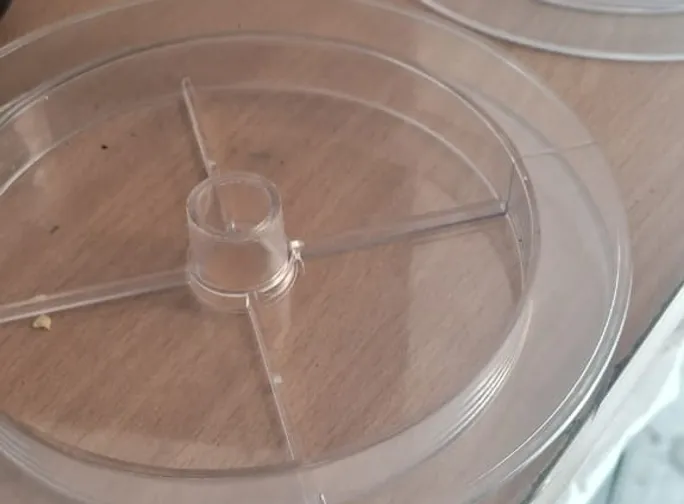

Bibbin
Material PS

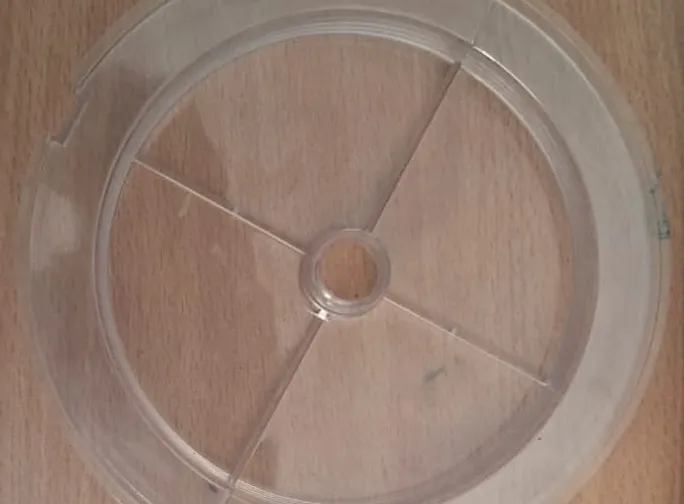

Bobbin
Material PS

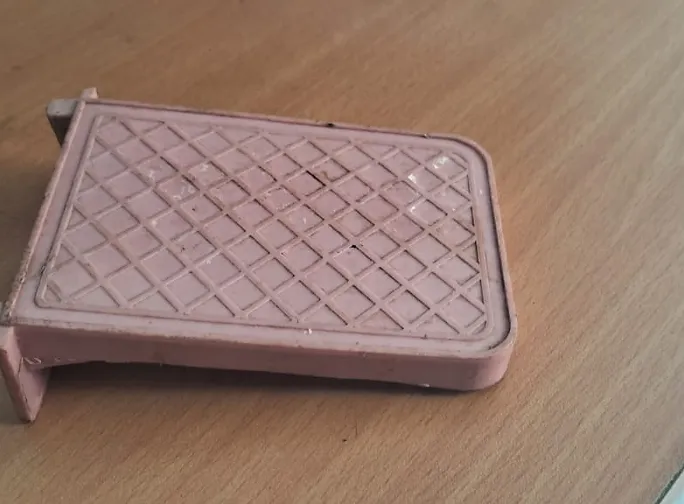

Bird Stand
Material pp

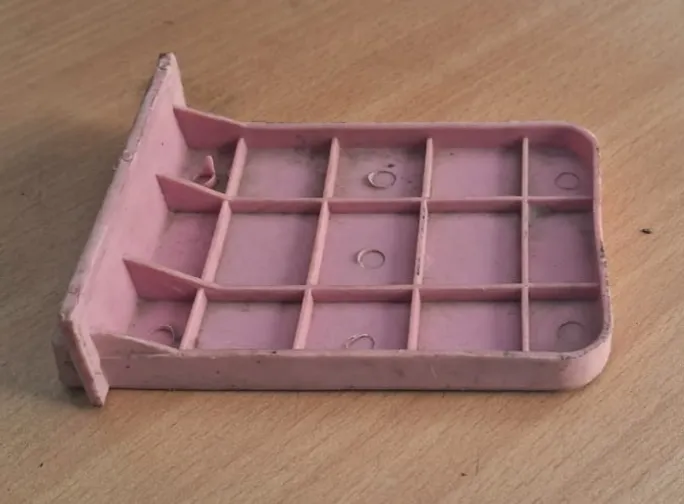

Bird Stand
Material pp

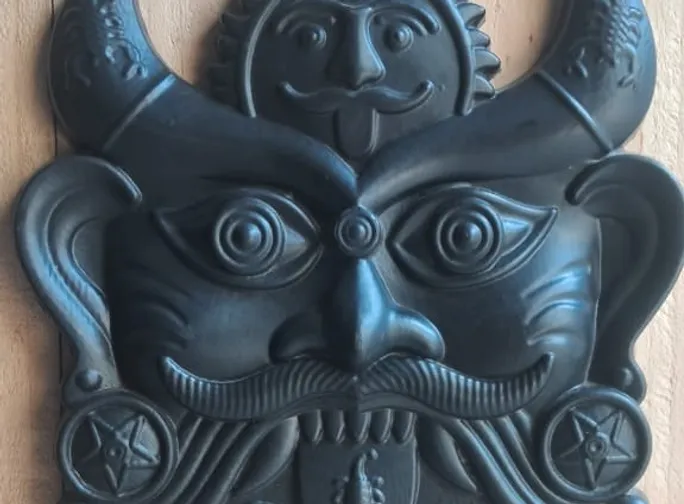

Bootham
Material PP
